SP45 – Single-Pole Connector-45A
SP45 – Single-Pole Connector-45A
Regular price
CHF 0.50
Regular price
Sale price
CHF 0.50
Unit price
per

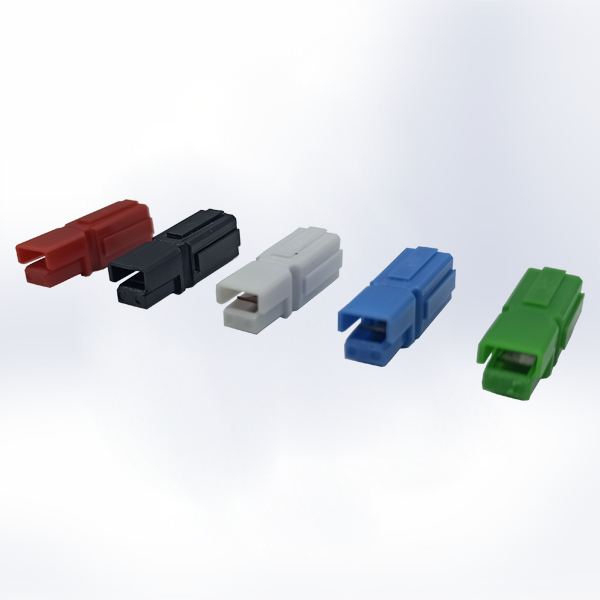

The SP45 – Single-Pole Connector has 5 different color options. There are blue, red, green, black and white colors. The 1-pole SP45 is appropriate for 45 continuous current . It is suitable for 600VAC or VDC. The SP45 battery connector has silver plated solid contacts. Its contacts provide minimum contact resistance to superior conductivity at high current. The stainless steel springs of the SP45 connector press to contacts. The springs ensure low-resistance connection in housing. The battery connector meets the standards of the IP20 protection class. Ambient temperature range of the battery connector is from -20 ° C to +105 ° C degrees.
The connector is made of high quality PC material. Its shell made of polycarbonate, flame reterdant material.
If you want to see other types of the battery connectors, you can click here.
- Silver plated appearance
- Stable over electricity
- Can be crimped connection
- Can be welded connection
FEATURES | |
Nominal Current | 45A |
Nominal Voltage | 600 VAC / VDC |
Operating Temperature | 20 ° C to +105 ° C |
Pin | 10/14 |
Certification | CE/ROSH/REACH |
Material of terminal | Copper plating silver |
Material of Shell | PC |
Mating cycles | 10000 for disconnect only |
