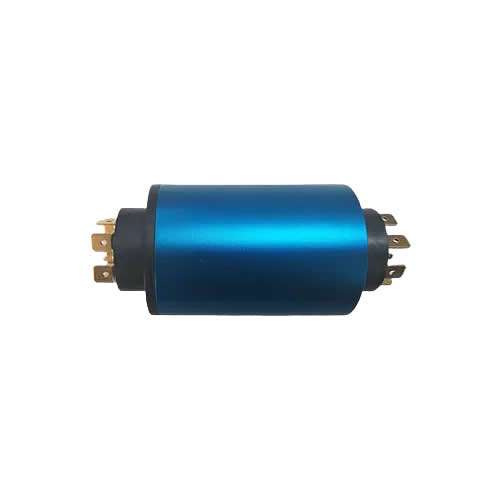

PROSPER- SRC045-6AL 6-Channel (4x 20A @ 2x 5A) Pin Type Slip Ring
Prosper SRC045-6AL Series Pin Type Slip Ring is mainly used in packaging machines, medical devices & pharmaceutical machines, plastic molding machines, and conveyor systems. This model of the series is much more robust and long-lasting due to its aluminum body structure.| Number of Channel | 6 |
|---|---|
| Rated Current | 4x 20A @ 2x 5A |
| Outside Diameter | 45mm |
| Rated Voltage | ? 400V AC/DC |
| Operating Temperature Range | -40°C to +80°C |
| Number of revolutions | ? 300 rpm |
| Connection | Pin |
| Contact Material | Gold Alloy (Copper-Zinc-Gold) |
| Electrical Interference | ? 0,01 ? (5 rpm, 6 VDC, 0,2 A) |
