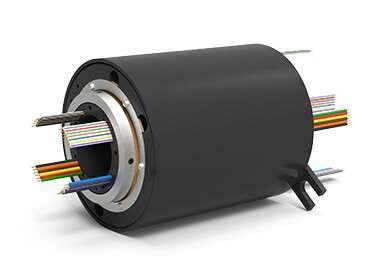

Through Bore Slip Ring EST24 (AC4598-24), 24-Circuit, under 50 Mbps
Through Bore Slip Ring EST24 (AC4598-24), 24-Circuit, under 50 Mbps
Regular price
CHF 4,999.00
Regular price
CHF 6,500.00
Sale price
CHF 4,999.00
Unit price
per
Tax included.
Couldn't load pickup availability
Through Bore Slip Ring, EST24 (AC4598-24), 24-Circuit, under 50 Mbps
Through Bore Slip Ring, EST24 (AC4598-24), 24-Circuit, under 50 Mbps| TOTAL CIRCUITS | 24 |
|---|---|
| (CIRCUITS) AMPS | (24x) 10A |
| VOLTAGE RATING | 600V |
| MAX. DATA SPEED | Under 50 Mbps [Non-Ethernet] |
| MAX. SPEED | 250 RPM |
| MOUNTING TYPE | Through Bore |
| CAPSULE LENGTH | 4.940" [125 mm] |
| LEAD WIRE LENGTH | 36" [914 mm] |
| CONTACT MATERIAL | Silver |
| WIRE GAUGE (AWG) / MATERIAL | 16 / Tin-Plated Copper |
| ELECTRICAL NOISE | 100 Milliohms (max.) |
| DUST / WATER PROTECTION | DSTI Slip Rings are designed with seals to help protect against dust, light splash and condensation. If your application requires additional protection, contact a member of our Sales Support Team to discuss options. |
| PRODUCT DISCLAIMER | Values are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed, duty cycle and temperature. In order to successfully transfer digital data signals, a variety of conditions must be met. Please consult with DSTI for approval. For the most reliable transfer of digital data signals, see our Ethernet slip ring options. All electrical components (including electrical slip rings) are non-returnable. |
